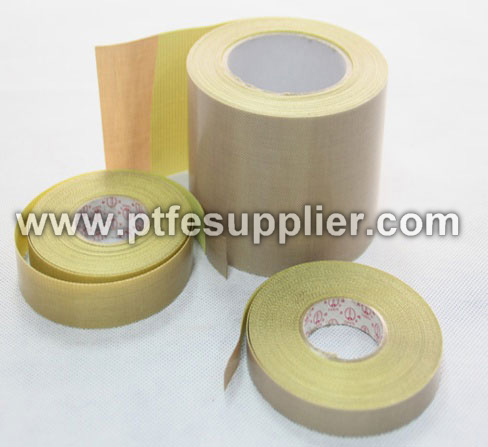

China PTFE Coated Glass Fabric Silicone PSA Tape,PTFE Coated Glass Fabric Silicone PSA Tape Manufacturer
PTFE PSA Tape is made of skived PTFE film, with a high temperature and pressure-sensitive silicone or acrylic adhesive backing for easy positioning and adhesion. It has two types: one has release liner, the other hasn’t.
Its advantages:
Superior release characteristics
Exceptional flexibility and conformity to irregular surfaces
High elongation properties
Can be elongated up to 300% of its original size
Excellent chemical resistance
Low friction
Operational stability from -76° to +500°F (-60° to +260°C) with a silicone adhesive, from -76° to +275°F (-60° to 135°C) with a acrylic adhesive.
This tape has received wide acceptance in both military and industrial applications, it excels as a wire wrap and insulation tape for high dielectric and high temperature applications, it is also ideal for use as a tank liner and for the lining of molds.
| Specification of PTFE Coated Glassfiber Silicone PSA Tape | ||||
| FTAP-300G | ||||
| Thickness(mm) | Max width(mm) | Standard length(per roll,M) | Colour | Temperature range(ºC) |
| 0.13 | 1000 | 30~50 | Beige/Fulvous/Black | -60~+260 |
| 0.18 | 1000 | 30~50 | Beige/Fulvous/Black | -60~+260 |
| 0.20 | 1000 | 30~50 | Beige/Fulvous/Black | -60~+260 |
| 0.25 | 1000 | 30~50 | Beige/Fulvous/Black | -60~+260 |
| T-300FG | ||||
| Thickness(mm) | Width(mm) | Standard length(per roll,M) | Colour | Temperature range(ºC) |
| 0.13 | 10~350 | 10~33 | Beige/Fulvous/Black | -60~+260 |
| 0.18 | 10~350 | 10~33 | Beige/Fulvous/Black | -60~+260 |
| 0.20 | 10~350 | 10~33 | Beige/Fulvous/Black | -60~+260 |
| 0.25 | 10~350 | 10~33 | Beige/Fulvous/Black | -60~+260 |
| FBXL-300 | ||||
| Thickness(mm) | Width(mm) | Standard length(per roll,M) | Colour | Temperature range(ºC) |
| 0.13 | 10~350 | 10~33 | Beige/Fulvous | -60~+260 |
| 0.18 | 10~350 | 10~33 | Beige/Fulvous | -60~+260 |
| 0.20 | 10~350 | 10~33 | Beige/Fulvous | -60~+260 |
| 0.25 | 10~350 | 10~33 | Beige/Fulvous | -60~+260 |
