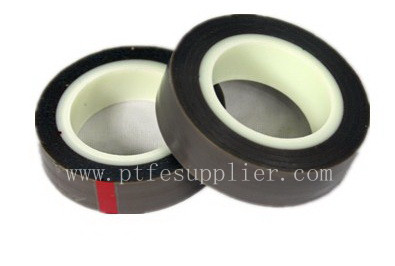

Superbright company select the high purify of PTFE pulverous machining mould press materials, shall press materials carry through sinter shaped after skive, ball of wax accomplish on high-grade purification room. We adopt special fine and high precision of technology to skive and get the high quality of PTFE film, treatment after a special surface and then coating adhesive as the base of PTFE Skived Film Silicone PSA Tape.
Front: PTFE Film
Back: Silicon Adhesive
It has two types: one has release liner, the other hasn’t.
1.The using temperature is between -60 Degrees Celsius to 260 Degrees Celsius, weather-resistant & anti-aging.
2. Non-Adhesive: The surface is smooth, not easy for adhesion. Easy to clean the surface oil, stain, or other attachments.
3. Resistant strong acid, alkali and various kinds of organic solvent and chemical etching.
4. Non-toxic, drug resistance. Almost resistant to all pharmaceutical items.
5. Good insulation, prevent ultraviolet, anti-static.
6. Fire retardant.
7. Easy to use, long service life.
A: All kinds of high temperature of roller coated, heating plate, thick liquid yarn machine’off-membrane drum, thermoplastic demoulding and other off-membrane industries.
B: Food, dairy products, pharmaceuticals of plastic film bags hot sealing pressure sticky.
C: The sliding channel, hopper, aviation mould etc liner paste.
D: Suitable for other places which need anti-metal and keeping a smooth part
E: Corrosion resistance and high temperature resistant surface treatment
F: As insulating liner, insulation parts of the insulation encapsulation etc.
G: Used for various fine pressure roller coated machine, the surface of laminating content
These product properties are suggestive and all products can be customized or converted to fit specific application requirements. Please contact us to discuss your unique application needs.
Specification of PTFE Skived Film Silicone PSA Tape | |||||
FTAP-310M TAPE | |||||
Thickness(mm) | Fabric thickness(mm) | Width(mm) | Standard length(M) | Corlor | Temperature range(°C) |
0.08 | 0.05 | 300~1000 | 30~50 | gray | -60~+260 |
0.13 | 0.08 | 300~1000 | 30~50 | gray | -60~+260 |
0.18 | 0.12 | 300~1000 | 30~50 | gray | -60~+260 |
0.20 | 0.15 | 300~1000 | 30~50 | gray | -60~+260 |
FTAP-310FM TAPE | |||||
Thickness(mm) | Fabric thickness(mm) | Width(mm) | Standard length(M) | Corlor | Temperature range(°C) |
0.08 | 0.05 | 10~100 | 10 | gray | -60~+260 |
0.13 | 0.08 | 10~100 | 10 | gray | -60~+260 |
0.18 | 0.12 | 10~100 | 10 | gray | -60~+260 |
0.20 | 0.15 | 10~100 | 10 | gray | -60~+260 |
Special requirment please contact our sales manager |
